1: Tosh ko'prigi arra kesish mashinasi uchun texnik parametr
| Ism | Parameter |
| Diameter of saw blade | Φ400-450mm |
| Dimensions of working platform | 3300x2000 mm |
| Max. length of horizontal cutting | 3300 mm |
| Max. cutting thickness | 100 mm |
| Max. lifting travel | 300 mm |
| Asosiy dvigatelning quvvati | 15 kVt |
| Power of cutter frame reciprocating motor | 1,1 kVt |
| Power of crossbeam shifting motor | 1,5 kVt |
| Power of hydraulic station motor | 2,2 kVt |
| Power of lifting motor | 1,5 kVt |
| Gross power | 21,3 kVt |
| Water consumption | 2m3/h |
| Olchamlari (UxKxY) | 5700x3260x2765 mm |
| Gross weight | 5400 kg |
2:The Features of Tosh ko'prik arra kesish mashinasi
1, Mashina Siemens PLC va sensorli ekranni qabul qiladi, barqaror sifat va oson ishlaydi.
2, Machine's linear guide used is Taiwan Hiwin linear guide which will make sure the cutting accuracy and keep machine's longer lifetime.
3, pichoqni egish:0 daraja , 45 daraja,0 daraja - 90 daraja - 180 daraja - 270 daraja to'liq avtomatik joylashtirish tekis va 45 daraja kesish.
{0}} stolni 85 gradusgacha egish, stolni 0 gradusdan 360 gradusgacha burish va istalgan darajada toʻxtatish.
4, elektr shkafida ishlatiladigan barcha asosiy elektr qismlari Siemens va Schneider brendi bo'lib, yuqori sifatli va xorijda manba qilish oson.
5, The machine is designed for one 20ft container's mostly assembled loading justly, easy for unloading and install.
6, Mashinalarni ishlatish juda oson. Onlayn ko'rsatmalardan so'ng-mijoz uch kun ichida mustaqil ishlashi mumkin.
3: Kompaniyamiz va mahsulotlarimizning kuchi

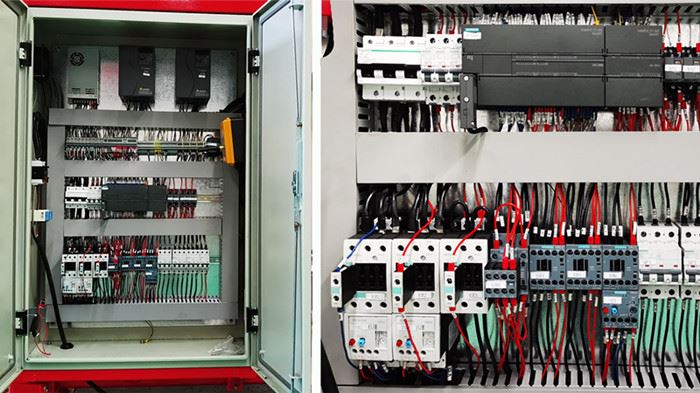

Elektr shkafi ish paneli fotosuratlari:
Seminar va dastur
4: Tez-tez so'raladigan savollar:
1) To'lov:
Biz TT, L/C va hokazo to'lov shartlarini qo'llab-quvvatlaymiz.
2) Yetkazib berish muddati:
The machine can be shipped within 20 workdays when receive customer's payment.
3) Kafolat muddati:
Mashinaga bir yil kafolat beriladi. Odamning{0}}halokatga uchraganligi va chaqmoq, suv toshqini, zilzila, noto‘g‘ri kuchlanish kafolatga kirmaydi. Lekin biz -texnologiya bo‘yicha bepul ko‘rsatmalarni qo‘llab-quvvatlashimiz mumkin.
4) Bizning xizmatimiz haqida nima deyish mumkin?
Bizning texnikimiz sizga mashinani qanday o'rnatishni ko'rsatishi mumkin va agar sizda biron bir muammo bo'lsa, bizning jamoamiz sizni qo'llab-quvvatlash uchun doimo shu yerda.
